AERODYNAMIC DESIGN
The Mack® Bulldog® sits low on Granite's sloped hood providing improved aerodynamics on the road and excellent visibility on the jobsite. And the larger radiator opening provides better cooling with less fan engagement.
DURABLE HEADLIGHTS
The LEXAN® headlight covers are impact resistant to handle the punishment of rocky jobsites and offer easy accessibility for replacing bulbs without a single tool.
THREE-PIECE BUMPER
Granite™ has a three-piece stylized front bumper that makes replacement easy and economical.
SPLASH SHIELDS
Hood splash shields keep the compartment clean extending component life, and they lift with the hood to create more room for technicians to work.
DURABLE HOOD
Hood isolators allow the hood to flex independently for increased durability over rough terrain.
GALVANIZED STEEL CAB
Granite's durable galvanized steel cab is mounted on airbags and shocks and stabilized with sway bars, so while the truck soaks up the rough stuff, the driver stays comfortable, rested and productive.
RUBBER-SEALED WINDSHIELD
A two-piece windshield is isolated in a rubber seal, which puts less stress on the windshield and makes it easier to replace.
COLLAPSIBLE MIRRORS
Collapsible mirrors fold in to eliminate door sheet metal damage in tight jobsite conditions. Heated, lighted and motorized mirrors are available.
EASY CAB ENTRY
Sculpted, self-cleaning steps and a full-size grab bar provide an extra measure of safety getting in and out of the cab.
| |
CAB MOUNTED EXHAUST
The exhaust is flush with the back of cab to provide 10 inches more room for body builders as compared to a stanchion-mounted exhaust.
UNDER CAB MOUNTED COMPONENTS
The LEXAN® headlight covers are impact resistant to handle the punishment of rocky jobsites and offer easy accessibility for replacing bulbs without a single tool.
"D" SHAPED FUEL TANK
Granite is available with this unique tank design that holds more fuel in the same space.
CAB AIR SPRINGS
Drivers can work more comfortably thanks to large, outboard-mounted air springs that provide cushioning, stability and reduced vibration.
HOOD SAFETY LATCH
The hood safety latch engages automatically and keeps the hood up, even in the windiest conditions. Disengage the latch by simply flipping it up before closing the hood.
LARGE PEEP WINDOW
The large peep window and visibility door provide exceptional views, and the quick release mechanism allows easy access for cleaning.
SUN VISOR
Stainless steel or painted sun visors are available.
FRONT FENDERS
Flexible hood-mounted fender extensions are positioned to protect the hood and control road splash.
AIR INTAKES
Granite features optional bright finish air intake vents.
|
Engine
TRANSMISSIONS
AIR/BRAKE
ELECTRICAL
INTERIOR/EXTERIOR
FRONT AXLE
REAR AXLE
Engine: Mack® MP7 Or MP8*
- Horsepower And Torque
MP8 – 13 Liter With 415 To 505 HP And Torque Ratings From 1,570 To 1,760 ft.-lbs.
MP7 – 11 Liter With 325 To 405 HP And Torque Ratings From 1,200 To 1,560 ft.-lbs.
- Mack PowerLeash™ Engine Brake – (MP7 – 420 HP At 2,100 RPM / MP8 – 425 HP At 2,100 RPM) REPTO
- Rear Engine Power Takeoff) – SAE 1350
- V-MAC® IV – Total Vehicle Electronics
- Air Compressor – Meritor/Wabco 18.7 cfm.
- ClearTech™ SCR – Available Horizontal or Back-Of-Cab
- Diesel Particulate Filter – Mack Cap (Passenger Side Under Step)
- Single Or Dual Vertical Exhaust
- Silicone Engine Hoses And Tubing
- Poly-V Fan Belt With Automatic Tensioner
- Fan Drive, Electronically Modulated Multi-Speed Viscous / On-Off
- Flywheel Housing – Aluminum (Lightweight)
- Radiator – Aluminum Core
- Electronic Starter Interlock
* Specifications shown are applicable to North American product only. For specifics on Export products, please refer to the Mack Worldwide tab.
TRANSMISSIONS*
- Clutch – Self And Manual Adjusting Mechanical Cable – Standard
- Air Operated Clutch Assist Pedal – Optional
- Transmission Bell Housing – Aluminum Or Iron
- PTO (Power Takeoff) Up To Six Openings, SAE 6 + 8
- Transmissions**
Mack TM308 Maxitorque® ES Shift Triple-Counter Shaft |
8 Speed |
17.77 / 0.71 Ratio (Low/High) |
Mack TM308M Maxitorque ES Shift Triple-Counter Shaft |
8 Speed |
17.77 / 0.71 Ratio (Low/High) |
Mack TM309 Maxitorque ES Shift Triple-Counter Shaft |
9 Speed |
25.21 / 0.71 Ratio (Low/High) |
Mack TM309M Maxitorque ES Shift Triple-Counter Shaft |
9 Speed |
25.21 / 0.71 Ratio (Low/High) |
Mack T309 Maxitorque ES Shift Triple-Counter Shaft |
9 Speed |
11.40 / 0.71 Ratio (Low/High) |
Mack T309(LR) Maxitorque ES Shift Triple-Counter Shaft |
9 Speed |
13.93 / 0.71 Ratio (Low/High) |
Mack T310 Maxitorque ES Shift Triple-Counter Shaft |
10 Speed |
13.81 / 0.73 Ratio (Low/High) |
Mack T310M Maxitorque ES Shift Triple-Counter Shaft |
10 Speed |
17.35 / 0.73 Ratio (Low/High) |
Mack T310ME Maxitorque ES Shift Triple-Counter Shaft |
10 Speed |
17.35 / 0.73 Ratio (Low/High) |
Mack T310MLR Maxitorque ES Shift Triple-Counter Shaft |
10 Speed |
27.31 / 0.71 Ratio (Low/High) |
Mack T313 Maxitorque ES Shift Triple-Counter Shaft |
13 Speed |
13.44 / 0.74 Ratio (Low/High) |
Mack T313LR Maxitorque ES Shift Triple-Counter Shaft |
13 Speed |
16.42 / 0.71 Ratio (Low/High) |
Mack T318 Maxitorque ES Shift Triple-Counter Shaft |
18 Speed |
13.44 / 0.71 Ratio (Low/High) |
Mack T318LR Maxitorque ES Shift Triple-Counter Shaft |
18 Speed |
16.42 / 0.71 Ratio (Low/High) |
Mack mDRIVE™ Automated MT-Premium (Overdrive) |
12 Speed |
11.73 / 0.79 Ratio (Low/High) |
Mack mDRIVE Automated MT-Fleet (Direct Drive) |
12 Speed |
14.94 / 1.00 Ratio (Low/High) |
Allison® – EVS Or RDS |
5 Speed |
3.51 / 0.74 Ratio (Low/High) |
Allison – EVS Or RDS |
6 Speed |
3.51 / 0.74 Ratio (Low/High) |
Eaton® Fuller® Roadranger® Twin Counter Shaft |
9 Speed |
12.57 / 0.73 Ratio (Low/High) |
Eaton Fuller Roadranger Twin Counter Shaft |
10 Speed |
12.69 / 0.74 Ratio (Low/High) |
Eaton Fuller Roadranger Twin Counter Shaft |
11 Speed |
26.08 / 0.73 Ratio (Low/High) |
Eaton Fuller Roadranger Twin Counter Shaft |
13 Speed |
12.31 / 0.73 Ratio (Low/High) |
Eaton Fuller Roadranger Twin Counter Shaft |
15 Speed |
13.31 / 0.79 Ratio (Low/High) |
Eaton Fuller Roadranger Twin Counter Shaft |
18 Speed |
14.40 / 0.73 Ratio (Low/High) |
* Specifications shown are applicable to North American product only. For specifics on Export products, please refer to the Mack Worldwide tab.
** Other Supplier Transmissions Available
AIR / BRAKE*
- Dual Air Brake System
- Anti-Lock Brake System With Or Without Traction Control
- Mack Road Stability Advantage™ System
* Specifications shown are applicable to North American product only. For specifics on Export products, please refer to the Mack Worldwide tab.
ELECTRICAL*
- 12-Volt Electrical System
- Battery Box – Steel With Molded Plastic Cover Mounted LH Rail
- Courtesy Light Switch – Headlamp And Clearance
- Daytime Running Lights
- Electric Circuit Protection Package
- Waterproof Electrical Connections
- Headlights – Halogen Flush With Replaceable Bulbs
- Step-Mounted LED Work Lights (optional)
* Specifications shown are applicable to North American product only. For specifics on Export products, please refer to the Mack Worldwide tab.
CAB INTERIOR / EXTERIOR SPECIFICATIONS*
- Air Conditioner With Integral Heater And Replaceable Filter
- Air Cleaner With Restriction Monitor
- Cab Mounting - Four-Point System With Two Air Bags And Canted Shocks

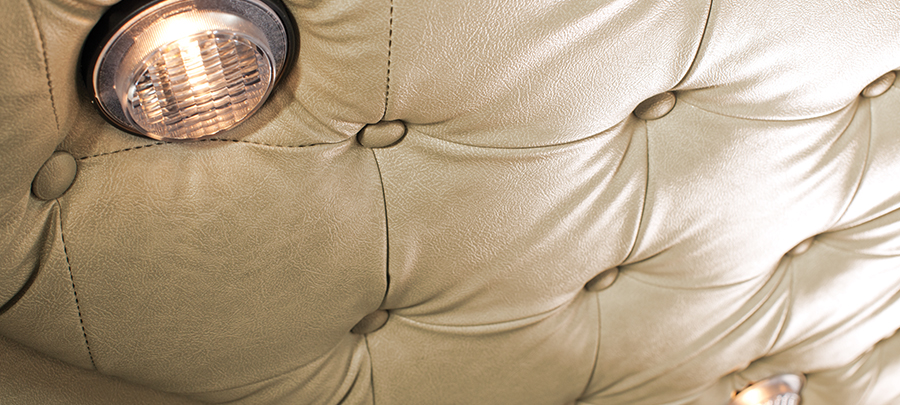

- Interior Lighting, 2 Lamps LH / 2 Lamps RH
- Galvanized Steel Visibility Doors With Passenger Peep Window
- Keyless Entry
- Floor Mats - Polyurethane Mack Signature Pawprint
- Grille - Silver Painted Or Bright Finish With Or Without Grille Surround
- Hood And Fenders - Fiberglass, Camoplast
- Fuel Tanks - "D" Shaped 22" and 26"
- Identification And Clearance Lights (5)
- Co-Pilot- Driver Display

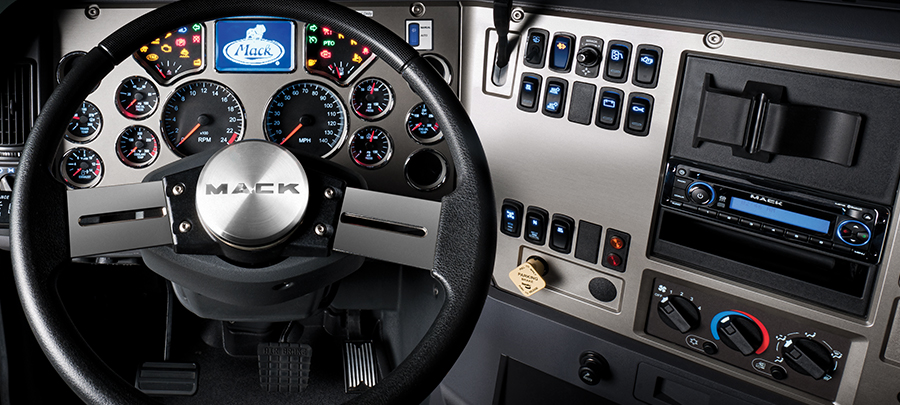

- Instrument Panel - Brushed Nickel, Woodgrain Or Charcoal
- Exterior Mirrors - Bulldog Stylized Or Aerodynamic Mirrors Available Lighted / Heated / Motorized
- Parking Brake On Indicator Light
- Overhead Console, 3 Storage Compartments With Net Retainers
- 12-Volt Auxiliary Power Outlets (2) - Dash Mounted
- AM/FM Stereo CD With Weather Band - Premium Radio Package Available

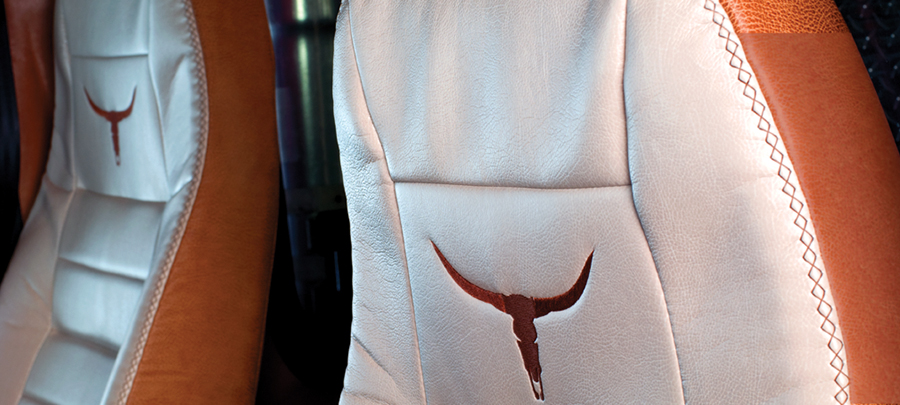

- Driver Seat - Bostrom Talladega- 915 Mid-Back Air Suspension
- Rider Seat - Mack Fixed Mid-Back Non-Suspension
- Steering Column - Adjustable Tilt And Telescopic
- Rear Storage Pouch
- Interior Sun Visor - Full Width
- Exterior Sun Visor - Bright Finish Or Painted
- Windshield - Safety Tinted 2-Piece
- Safety Tinted Side And Rear Windows
- Intermittent Windshield Wipers
- Paint - Custom Color Available For Cab, Chassis And Wheels
* Specifications shown are applicable to North American product only. For specifics on Export products, please refer to the Mack Worldwide tab.
FRONT AXLE*
- Mack UniMax Axles With Integrated Hub Material
12,000, 14,600, 18,000, 20,000 And 23,000 lb. Capacity
- Hub Material – Ferrous Or Aluminum
- Brakes
Drum: Bendix 16.5" X 5" Cast Spider, Inboard or Outboard Mounted
- Slack Adjusters – Haldex Automatic
- Suspension
Spring: Mack Multileaf (Camelback), Taperleaf
- Wheels – Alcoa Machine Clean Buff Aluminum Disc 22.5 X 8.25 w/ 10-Hole Hub Material Piloted
* Specifications shown are applicable to North American product only. For specifics on Export products, please refer to the Mack Worldwide tab.
REAR AXLE*
- Rear Axle
Single – 23,000 and 30,000 lb. Capacity
Tandem – 38,000, 40,000, 44,000, 52,000, 58,000, 65,000 lb. Capacity
Tri-Drive – 45,000, 48,000, 50,000, 52,000, 55,000, 60,000, 66,000, 69,000 lb. Capacity
- Carrier – Mack C150/151 Iron, Dual Reduction, Top-Mounted with Inter-Axle Power Divider & 4 Pinion Closed Differential
- Hub Material – Ferrous Or Aluminum
- Brakes
Drum: Bendix 16.5" X 7" Stamped Spider, Inboard or Outboard Mounted
Air: Bendix ADB22X Air Disc Brake
- Slack Adjusters – Haldex Automatic
- Suspension
Spring: Mack Multileaf (Camelback), Walking Beam and mRIDE
Air: Mack Air Suspension
- Wheels – Alcoa Machine Clean Buff Aluminum Disc 22.5 X 8.25 w/ 10-Hole Hub Material Piloted
* Specifications shown are applicable to North American product only. For specifics on Export products, please refer to the Mack Worldwide tab.
|
